Air-cooled diesel engines
FSH192F

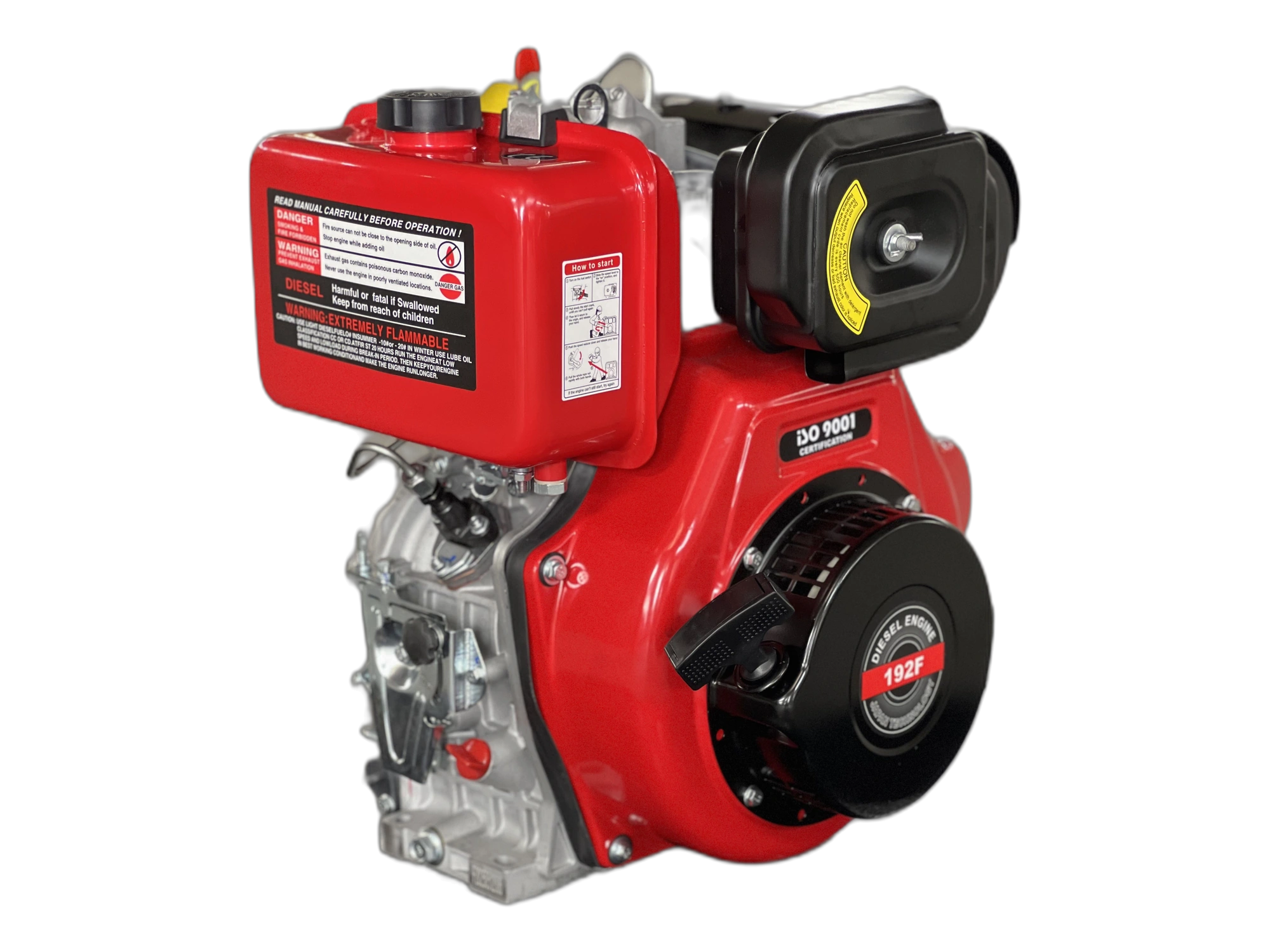

FSH192F is a 499 cc 13.0HP air-cooled, single-cylinder, four-stroke direct-injection diesel engine for selected KAMA 192F, KIPOR 192F and 192F-type replacement applications. It is suitable for high-output diesel water pumps, generator sets, irrigation and drainage equipment, power tillers, cultivators, plate compactors and other agricultural or construction machinery. Manual-start and electric-start configurations may be available. Confirm rated output, shaft dimensions, mounting pattern and rotation direction before ordering.
Key figures
The three numbers buyers ask for first, followed by the full catalogue row for FSH192F.
Specification
Every figure our catalogue prints for FSH192F, under Diesel engine range — air-cooled.
FSH192F — full specification
| Specification | FSH192F |
|---|---|
| Engine type | Air-cooled, 4-stroke, single cylinder, side valve |
| Valve design | Side valve |
| Combustion system | Direct injection |
| Rotation direction | Counterclockwise, facing PTO shaft |
| Fuel | Diesel, 0# in summer and -10# in winter |
| Lubricating system | Pressure splashed |
| Starting system | Recoil or electric start |
| Bore × stroke (mm) | 92 × 75 |
| Displacement (L) | 0.498 |
| Rated output (kW) | 7.6 / 8.6 |
| Max output (kW) | 8.5 / 9.3 |
| Fuel tank (L) | 5.5 |
| Lubricating oil (L) | 1.65 |
| Packing size L×W×H (mm) | 500 × 470 × 555 |
| 20FT unit | 192 |
| Net weight (KG) | 56 |
Typical applications
Where the FSH192F is normally put to work. Each one opens the full write-up: what the job needs, and where this class of machine stops being the right answer.
Irrigation and drainage
Engine-driven pump sets that move water where there is no mains supply — from a 2 inch portable unit to a 6 inch set delivering 160 m³/h.
Read the guideRoad and concrete works
Bidirectional plate compactors on 690 × 480 mm and 900 × 680 mm plates, plus concrete placement and finishing equipment for groundworks.
Read the guideFarm mechanisation
Walk-behind power tillers from 7 HP to 13 HP for soil preparation on smallholdings, in orchards and on terraced or enclosed ground.
Read the guideStandby and site power
Gasoline and diesel generating sets from 0.8 kVA to 9.5 kW, for backup power at shops, farms and events, and for tools on construction sites.
Read the guideContact
Tell us what you need
Send us your market, required output and configuration and we will come back with a suitable model and quotation. We reply to enquiries within one working day.
