Self-priming centrifugal pumps
Water pumps

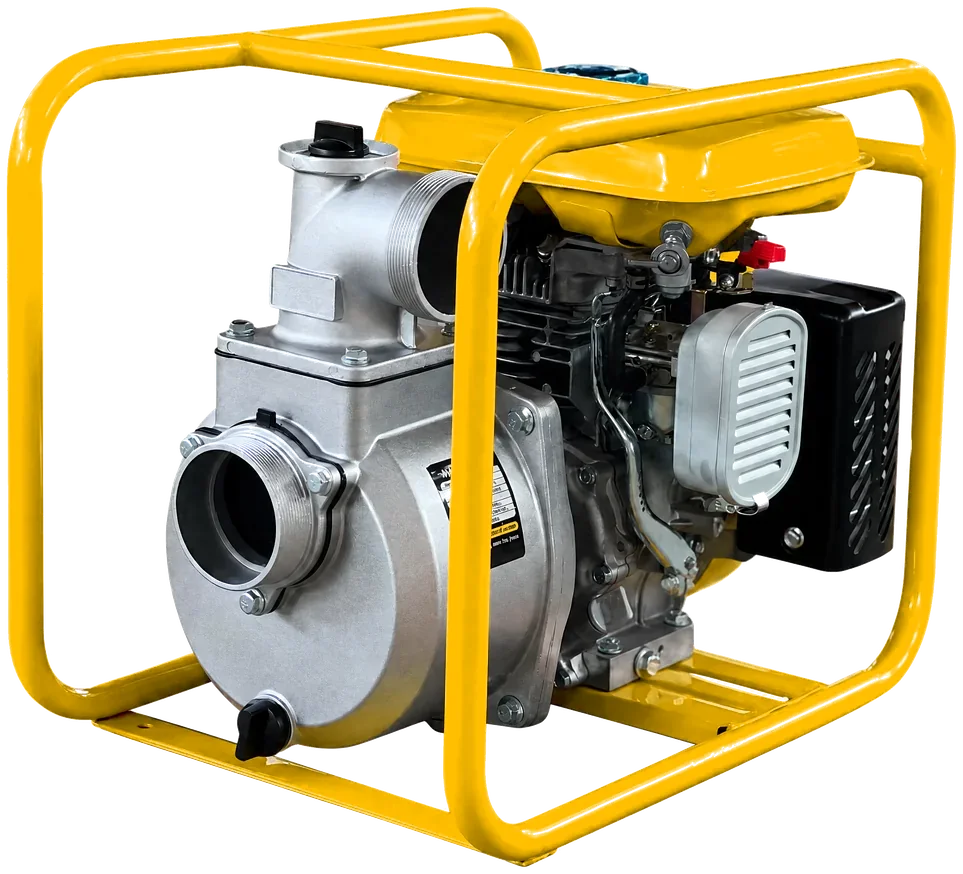

Engine-driven pump sets for irrigation, drainage and transfer duties. Cast-iron bodies, ceramic-carbon mechanical seals and delivery volumes from 36 to 160 cubic metres per hour.
Models in this range
4 models in 1 series. Open any model for the figures our catalogue prints for it, and to start a quotation.
Gasoline water pumps
4 modelsAt a glance
The points that decide a specification most often — taken from the model data below.
Up to 160 m³/h
Delivery volume from 36 m³/h on the FSHWP20 to 160 m³/h on the FSHWP60.
8 m suction head
Consistent suction lift across the range.
Ceramic carbon seal
Standard mechanical seal on every model.
2" to 6" connections
Suction and delivery sizes from 50 mm to 150 mm.
Frequently asked questions
What buyers ask before specifying water pumps — answered from the catalogue figures on this page.
What delivery volume can these pumps reach?
From 36 m³/h on the FSHWP20 to 160 m³/h on the FSHWP60. The FSHWP30 delivers 60 m³/h and the FSHWP40 delivers 80 m³/h.
Are the pumps self-priming?
Yes. Every model is a self-priming centrifugal pump, with a suction head of 8 m across the range.
What connection sizes are available?
2×2 inch (50 mm) on the FSHWP20, 3×3 inch (80 mm) on the FSHWP30, 4×4 inch (100 mm) on the FSHWP40 and 6×6 inch (150 mm) on the FSHWP60.
What total head do the pumps produce?
46 m on the FSHWP20, 32 m on the FSHWP30, 28 m on the FSHWP40 and 26 m on the FSHWP60.
Which engines drive the pump sets?
GX160, GX200, GX390 and GX440 class engines, with recoil or electric start. Fuel tank capacity is 3.8 L on the smaller two models and 6.5 L on the larger two.
What kind of shaft seal is fitted?
A ceramic carbon mechanical seal is standard on every model in the range.
Compare all models
Transcribed from our printed catalogue. Scroll the table sideways to see every model.
Gasoline water pump
| FSHWP20 | FSHWP30 | FSHWP40 | FSHWP60 | |
|---|---|---|---|---|
| Type | Self-priming centrifugal pump | Self-priming centrifugal pump | Self-priming centrifugal pump | Self-priming centrifugal pump |
| Suction x delivery (mm / inch) | 50*50, 2*2 | 80*80, 3*3 | 100*100, 4*4 | 150*150, 6*6 |
| Total head (m) | 46 | 32 | 28 | 26 |
| Suction head (m) | 8 | 8 | 8 | 8 |
| Max delivery volume (m³/h) | 36 | 60 | 80 | 160 |
| Mechanical seal | Ceramic carbon | Ceramic carbon | Ceramic carbon | Ceramic carbon |
| Engine model | GX160 | GX200 | GX390 | GX440 |
| Fuel tank capacity (L) | 3.8 | 3.8 | 6.5 | 6.5 |
| Starting system | Recoil / electric start | Recoil / electric start | Recoil / electric start | Recoil / electric start |
| Packing size (L*W*H) mm | 485*375*385 | 515*375*415 | 605*515*570 | 760*545*650 |
| 20 FT unit | 330 | 330 | 270 | 120 |
| Net weight (KG) | 26 | 28 | 32 | 90 |
