Air-cooled OHV engines
FSH390

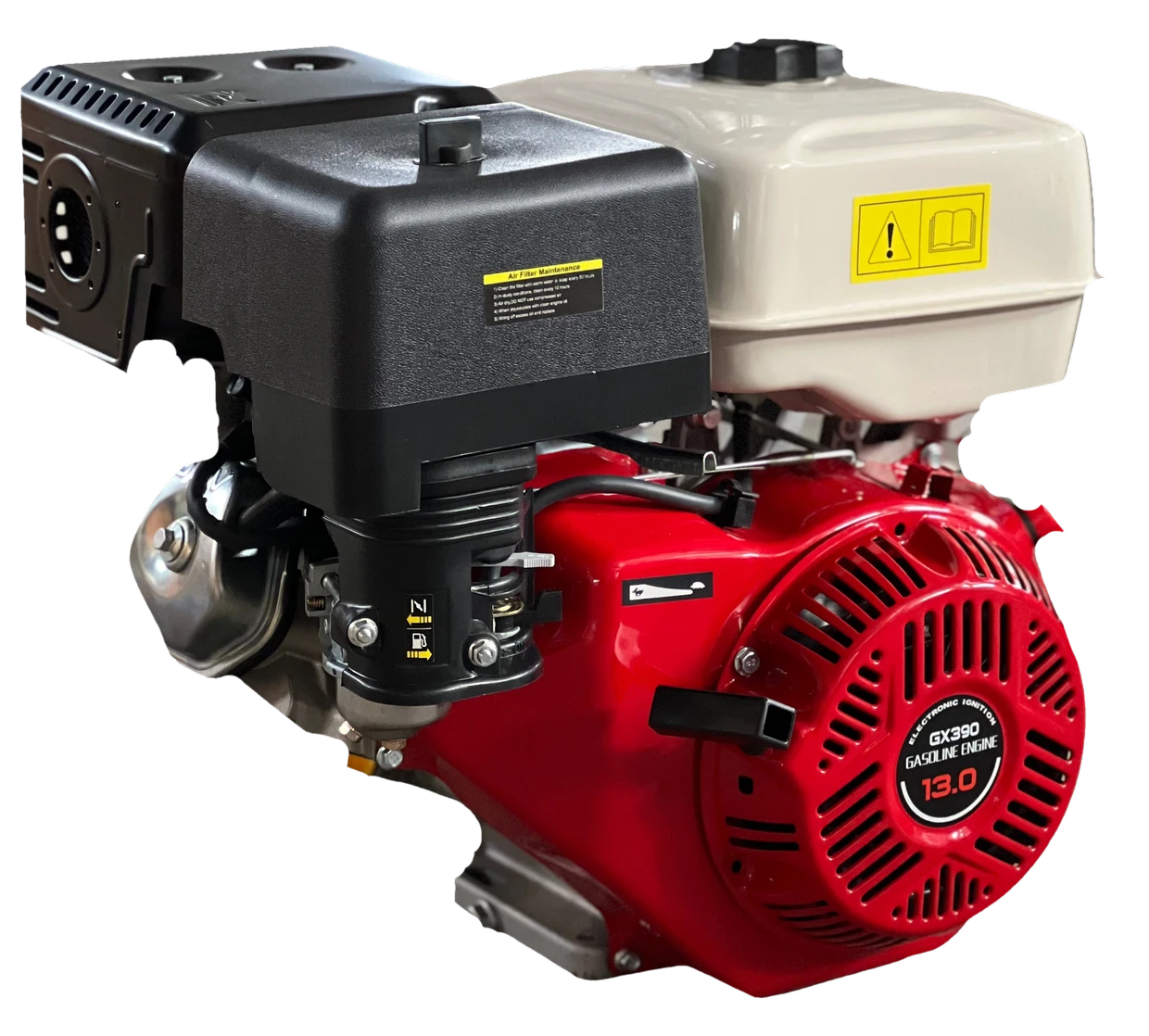

FSH390 is a 389 cc air-cooled OHV gasoline engine rated at 13 HP / 7.6 kW for selected Honda GX390-class and 188F-type replacement applications. It features a four-stroke single-cylinder design, recoil or electric start and TCI ignition, weighs 33 kg, and powers water pumps, generator sets, power tillers and plate compactors. OEM assembly is available; verify mounting and shaft compatibility before ordering.
Key figures
The three numbers buyers ask for first, followed by the full catalogue row for FSH390.
Specification
Every figure our catalogue prints for FSH390, under Engine range — selected models.
FSH390 — full specification
| Specification | FSH390 |
|---|---|
| Displacement | 389 cc |
| Rated output | 13 HP / 7.6 kW |
| Net weight | 33 kg |
| Engine type | Air-cooled, 4-stroke, OHV, single cylinder |
| Valve design | OHV |
| Starting system | Recoil or electric start |
| Ignition system | TCI |
| Fuel | Automobile unleaded gasoline |
| Reference class | Honda GX390 / 188F-class applications |
| Applications | Water pumps, generators, tillers and plate compactors |
Typical applications
Where the FSH390 is normally put to work. Each one opens the full write-up: what the job needs, and where this class of machine stops being the right answer.
Irrigation and drainage
Engine-driven pump sets that move water where there is no mains supply — from a 2 inch portable unit to a 6 inch set delivering 160 m³/h.
Read the guideRoad and concrete works
Bidirectional plate compactors on 690 × 480 mm and 900 × 680 mm plates, plus concrete placement and finishing equipment for groundworks.
Read the guideFarm mechanisation
Walk-behind power tillers from 7 HP to 13 HP for soil preparation on smallholdings, in orchards and on terraced or enclosed ground.
Read the guideStandby and site power
Gasoline and diesel generating sets from 0.8 kVA to 9.5 kW, for backup power at shops, farms and events, and for tools on construction sites.
Read the guideContact
Tell us what you need
Send us your market, required output and configuration and we will come back with a suitable model and quotation. We reply to enquiries within one working day.
