Twin-cylinder diesel engines
FSH2V92

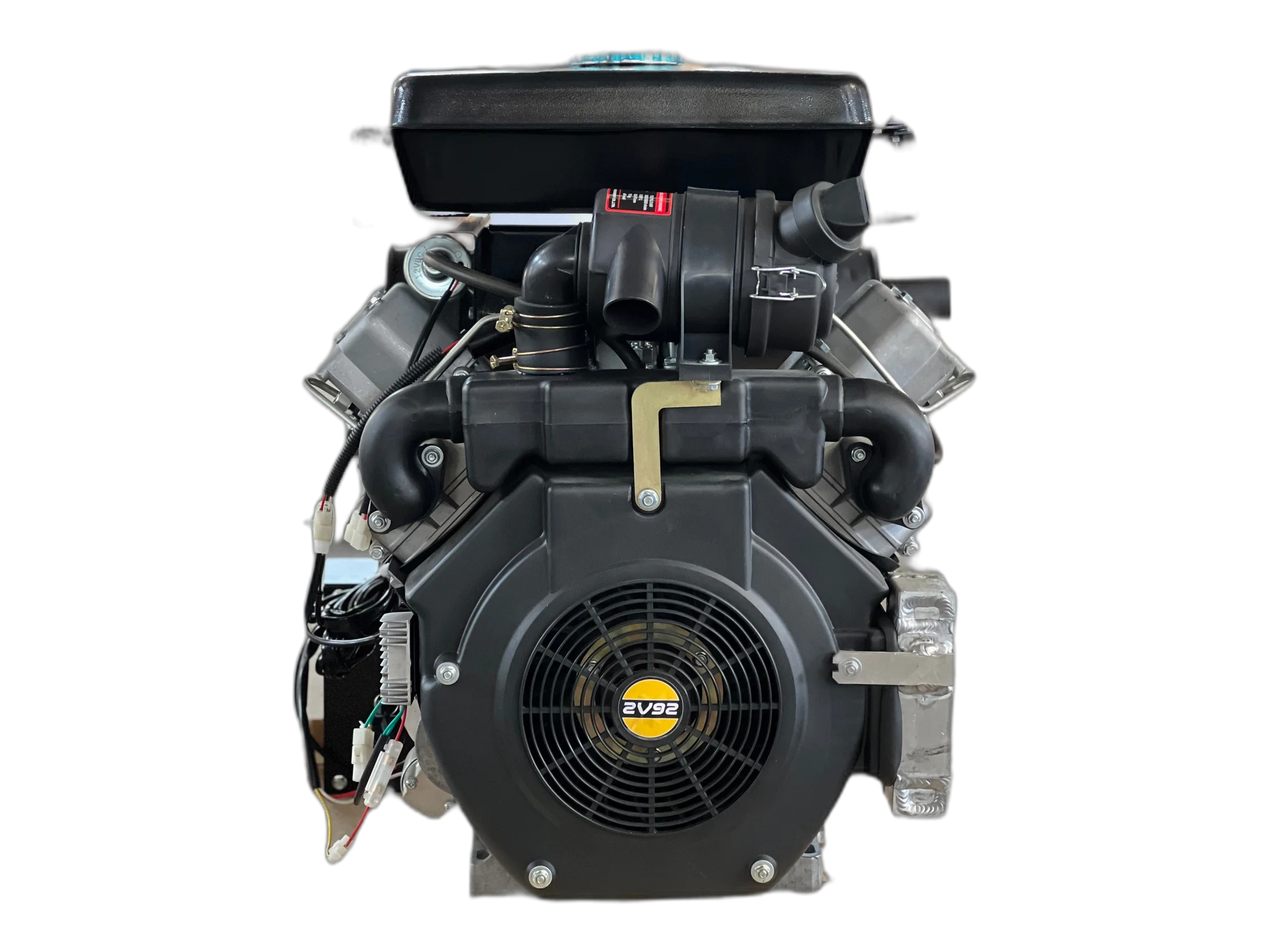

FSH2V92 is a 997 cc, air-cooled, four-stroke, vertical two-cylinder diesel engine with direct injection. It delivers 14.8–16.0 kW rated power, equivalent to approximately 20–21.5 HP, and up to 16.0–17.5 kW maximum power, approximately 21.5–23.5 HP. It features counterclockwise PTO rotation, recoil or electric start, a 12 L fuel tank, 4 L lubricating oil capacity and 75 kg net weight. Suitable for generator sets, large water pumps, agricultural machinery and KAMA or KIPOR-type equipment applications. Confirm mounting, PTO shaft and rotation direction before ordering.
Key figures
The three numbers buyers ask for first, followed by the full catalogue row for FSH2V92.
Specification
Every figure our catalogue prints for FSH2V92, under Twin cylinder diesel range.
FSH2V92 — full specification
| Specification | FSH2V92 |
|---|---|
| Engine type | Twin cylinder, vertical, air-cooled, 4-stroke |
| Combustion system | Direct injection |
| Rotation direction | Counterclockwise, facing PTO shaft |
| Fuel | Diesel, 0# in summer and -10# in winter |
| Lubricating system | Pressure splashed |
| Starting system | Recoil or electric start |
| Lubricating oil grade | CD grade or SAE 10W-30 / 15W-50 |
| Bore × stroke | 92 × 75 mm |
| Displacement | 0.997 L |
| Rated output | 14.8 / 16.0 kW |
| Max output | 16.0 / 17.5 kW |
| Fuel tank | 12 L |
| Lubricating oil | 4 L |
| Packing size | 560 × 520 × 640 mm |
| Net weight | 75 kg |
Typical applications
Where the FSH2V92 is normally put to work. Each one opens the full write-up: what the job needs, and where this class of machine stops being the right answer.
Irrigation and drainage
Engine-driven pump sets that move water where there is no mains supply — from a 2 inch portable unit to a 6 inch set delivering 160 m³/h.
Read the guideRoad and concrete works
Bidirectional plate compactors on 690 × 480 mm and 900 × 680 mm plates, plus concrete placement and finishing equipment for groundworks.
Read the guideFarm mechanisation
Walk-behind power tillers from 7 HP to 13 HP for soil preparation on smallholdings, in orchards and on terraced or enclosed ground.
Read the guideStandby and site power
Gasoline and diesel generating sets from 0.8 kVA to 9.5 kW, for backup power at shops, farms and events, and for tools on construction sites.
