Twin-cylinder gasoline engines
FSH2V90

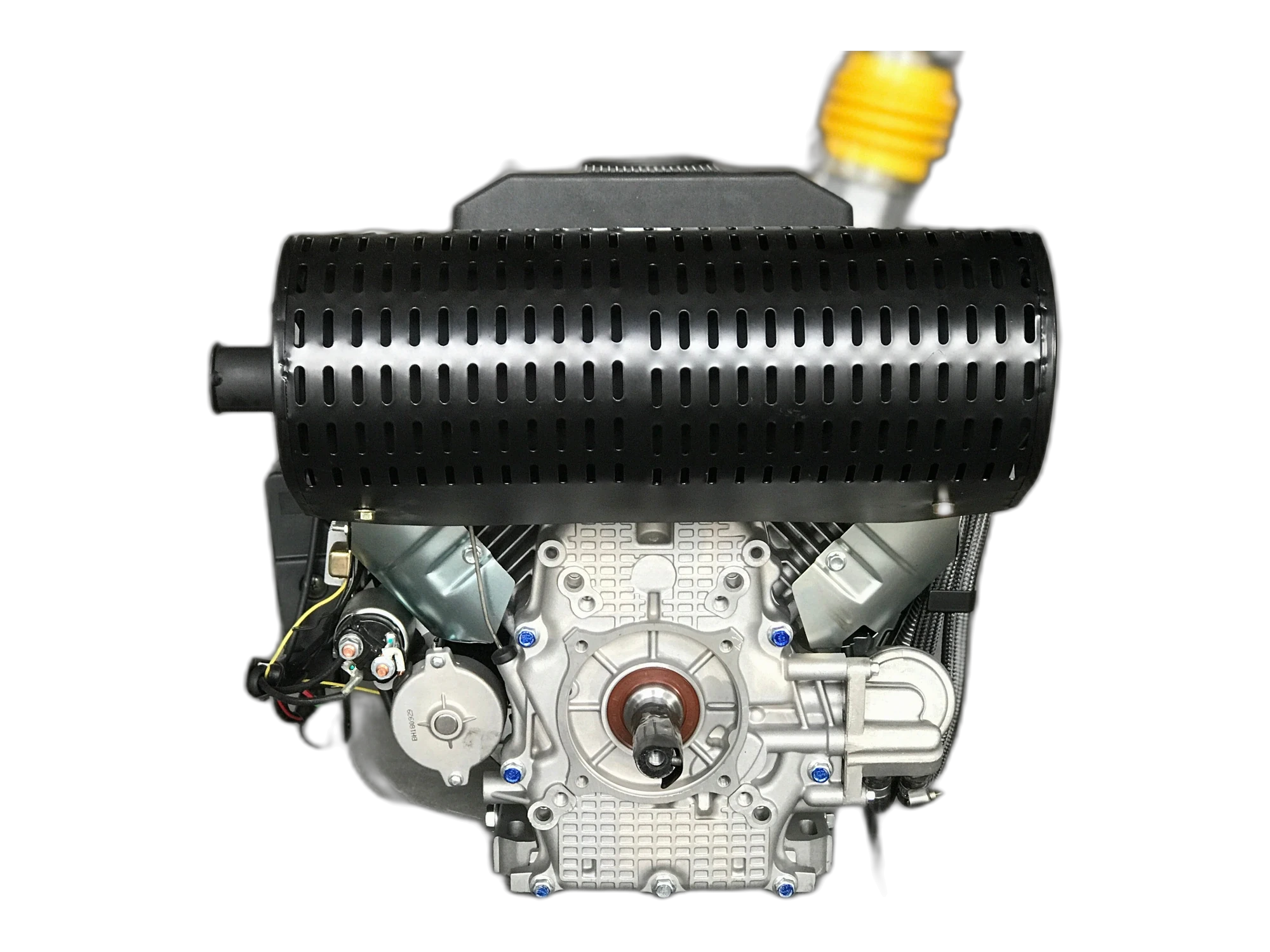

FSH2V90 is a 999 cc, air-cooled, four-stroke, two-cylinder OHV gasoline engine with transistor magneto ignition and electric start. It delivers 21.0–22.0 kW rated power, approximately 28–29.5 HP, and up to 22.0–24.0 kW maximum power, approximately 29.5–32 HP. With counterclockwise PTO rotation, a 12 L fuel tank, 2.3 L oil capacity and 57 kg net weight, it is suitable for heavy-duty generator sets, high-flow water pumps, agricultural machinery and KAMA or KIPOR-type equipment applications. Confirm PTO shaft, mounting and rotation direction before ordering.
Key figures
The three numbers buyers ask for first, followed by the full catalogue row for FSH2V90.
Specification
Every figure our catalogue prints for FSH2V90, under Twin cylinder gasoline range.
FSH2V90 — full specification
| Specification | FSH2V90 |
|---|---|
| Engine type | Twin cylinder, OHV, air-cooled, 4-stroke |
| Valve design | OHV |
| Ignition system | Transistor magneto |
| Starting system | Electric start |
| Rotation direction | Counterclockwise, facing PTO shaft |
| Fuel | Gasoline |
| Lubricating oil grade | SAE 10W-30 or 15W-50, CD grade |
| Bore × stroke | 90 × 78.5 mm |
| Displacement | 0.999 L |
| Rated output | 21.0 / 22.0 kW |
| Max output | 22.0 / 24.0 kW |
| Fuel tank | 12 L |
| Lubricating oil | 2.3 L |
| Packing size | 515 × 383 × 560 mm |
| Net weight | 57 kg |
Typical applications
Where the FSH2V90 is normally put to work. Each one opens the full write-up: what the job needs, and where this class of machine stops being the right answer.
Irrigation and drainage
Engine-driven pump sets that move water where there is no mains supply — from a 2 inch portable unit to a 6 inch set delivering 160 m³/h.
Read the guideRoad and concrete works
Bidirectional plate compactors on 690 × 480 mm and 900 × 680 mm plates, plus concrete placement and finishing equipment for groundworks.
Read the guideFarm mechanisation
Walk-behind power tillers from 7 HP to 13 HP for soil preparation on smallholdings, in orchards and on terraced or enclosed ground.
Read the guideStandby and site power
Gasoline and diesel generating sets from 0.8 kVA to 9.5 kW, for backup power at shops, farms and events, and for tools on construction sites.
